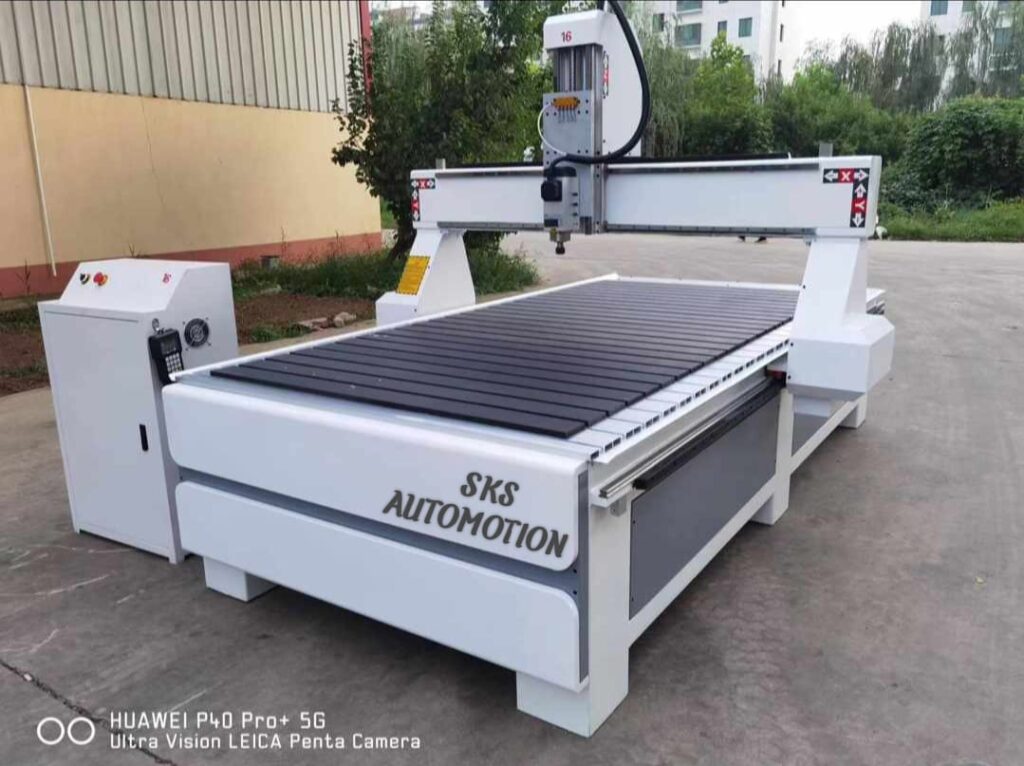

CNC Wood Router
SKS Automation CNC Router Machine is a high-precision CNC wood carving machine ideal for woodworking, such as wooden doors and furniture, windows, tables and chairs, cabinets, and panels. It delivers smooth cutting, accurate designs, and reliable performance for professional and industrial use.
Types of Wood CNC Machine
Cnc Router Wood Cutting Machine, 3.5 kW
We are offering a CNC wood carving machine designed for precision and durability. This heavy-duty CNC Router Wood Cutting Machine (3.5 kW) features a high-quality spindle and bits, delivering smooth carving, accurate cutting, and reliable performance trusted by customers.
| CNC Wood Router Machine Specifications | |
|---|---|
| Brand | SKS Automation |
| Machine Type | 3 Axis CNC Router Machine |
| X-Y Axis Working Area | 1300 x 2500 mm |
| Z Axis Working Area | 300 mm |
| Spindle Power | 3.5 kW High-Speed Spindle |
| Spindle Head Type | Single Spindle |
| Job Material | MDF, Plywood, Acrylic, Wood |
| Automation Grade | Automatic |
| Applications | Wood working, wooden doors & furniture, windows, tables & chairs, cabinets, panels, engraving, carving, and signage work |
| Availability | In Stock |

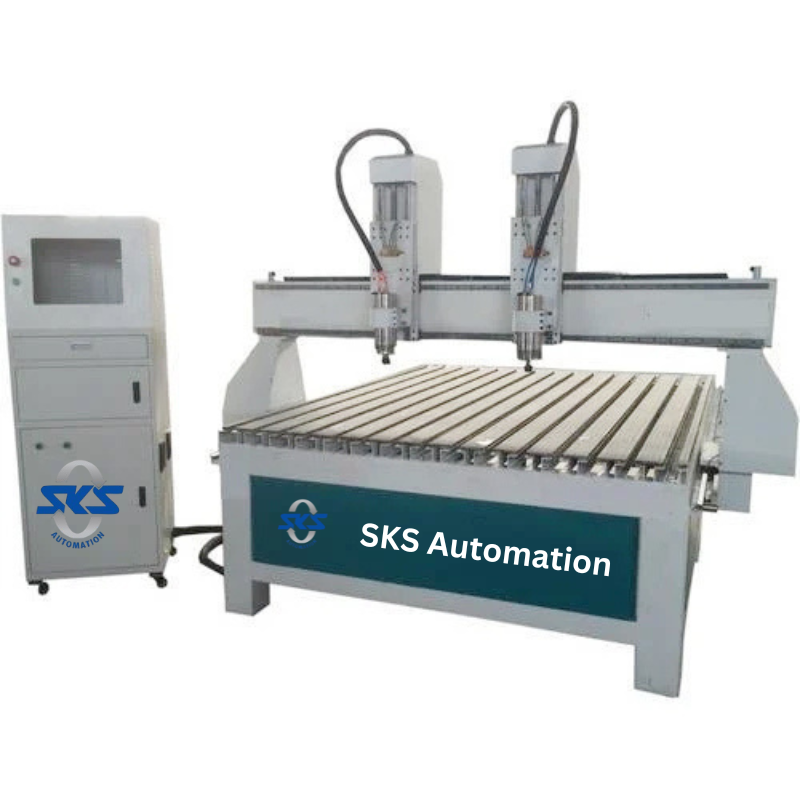

Double Spindle Wood CNC Router, 6 kW
The Double Spindle Wood CNC Router (6 kW) is an easy-to-use cnc wood cutting machine for cnc plywood cutting. It cuts wooden doors quickly and accurately, with strong servo motors, two spindles, and a large 1500×3000 mm working area.
| Double Spindle Wood CNC Router Machine – Specifications | |
|---|---|
| Model | 2025 |
| Brand | SKS Automation |
| Command Code | G Code (*.u00, *.mmg, *.plt, G Code) |
| Control System | SKS105 |
| Driven Motor | Servo Motor |
| Machine Type | 3 Axis CNC Router Machine |
| Job Material | Wooden Door |
| Spindle Head Type | Double Head Spindle |
| Spindle Power | 6 kW |
| Spindle Speed | 18,000 RPM |
| X-Y Axis Working Area | 1500 x 3000 mm |
| X-Y Movement | Rack & Pinion Transmission |
| Z Axis Working Area | 200 mm |
| Z Movement | Ball Screw Transmission |
| Minimum Order Quantity | 1 Unit |

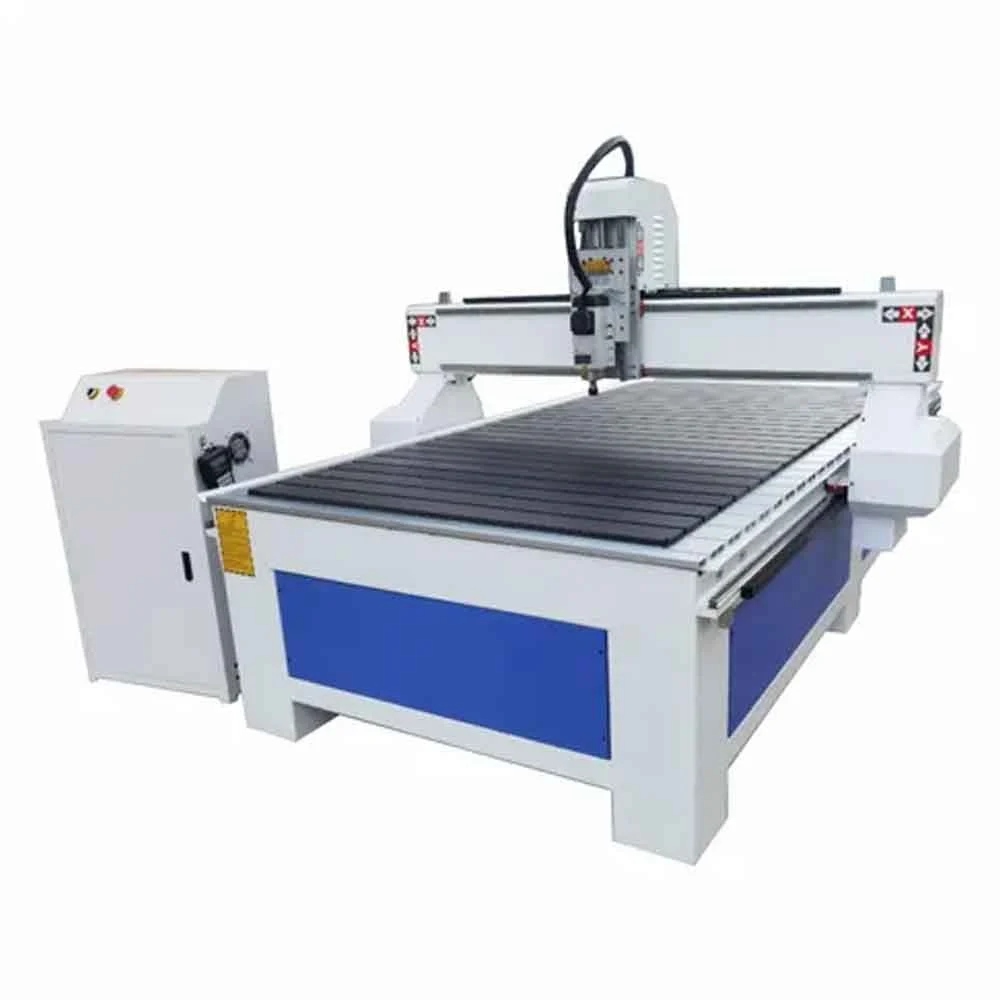

CNC Wood Router, 5.5 kW
SKS Automation Manufacturer offers a high-performance wood router CNC machine with a 5.5 kW spindle. This 3-axis, single-spindle CNC machine is ideal for cutting and carving wood, MDF, and acrylic with smooth, accurate, and reliable results.
| Brand Name | SKS Automation |
| Machine Type | 3 Axis CNC Router Machine |
| X-Y Axis Working Area | 1300 x 2500 mm |
| Z Axis Working Area | 300 mm |
| Spindle Power | 5.5 kW |
| Spindle Head Type | Single Spindle |
| Spindle Speed | 18,000 RPM |
| Repositioning Accuracy | 0.025 mm |
| Job Material | Wood, HDF, MDF, PVC, Acrylic, Sign Board, Plastic |
| Command Code | G Code (*.u00, *.mmg, *.plt, G Code) |
| Availability | In Stock |

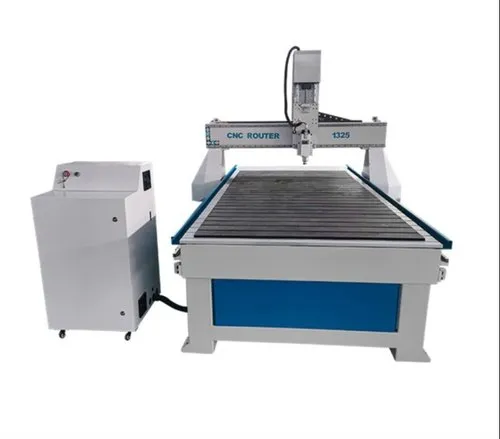

Single Head Cnc Wood Router, 6 kW
The Single Head CNC Wood Router (6 kW) is easy to use CNC woodworking machinery for wood and plywood work. With a large 1300×2500 mm area and a powerful 6 kW spindle, it delivers smooth, fast, and accurate cnc plywood cutting machine results.
| Brand Name | SKS Automation |
| Model | W1352B |
| Machine Type | 3 Axis CNC Router Machine |
| X-Y Axis Working Area | 1300 x 2500 mm |
| Z Axis Working Area | 300 mm |
| Spindle Power | 6 kW High-Speed Spindle |
| Spindle Head Type | Single Spindle |
| Spindle Speed | 24,000 RPM |
| Job Material | MDF, Plywood, Wood, Acrylic, Sign Board, Foam Board |
| Availability | In Stock |

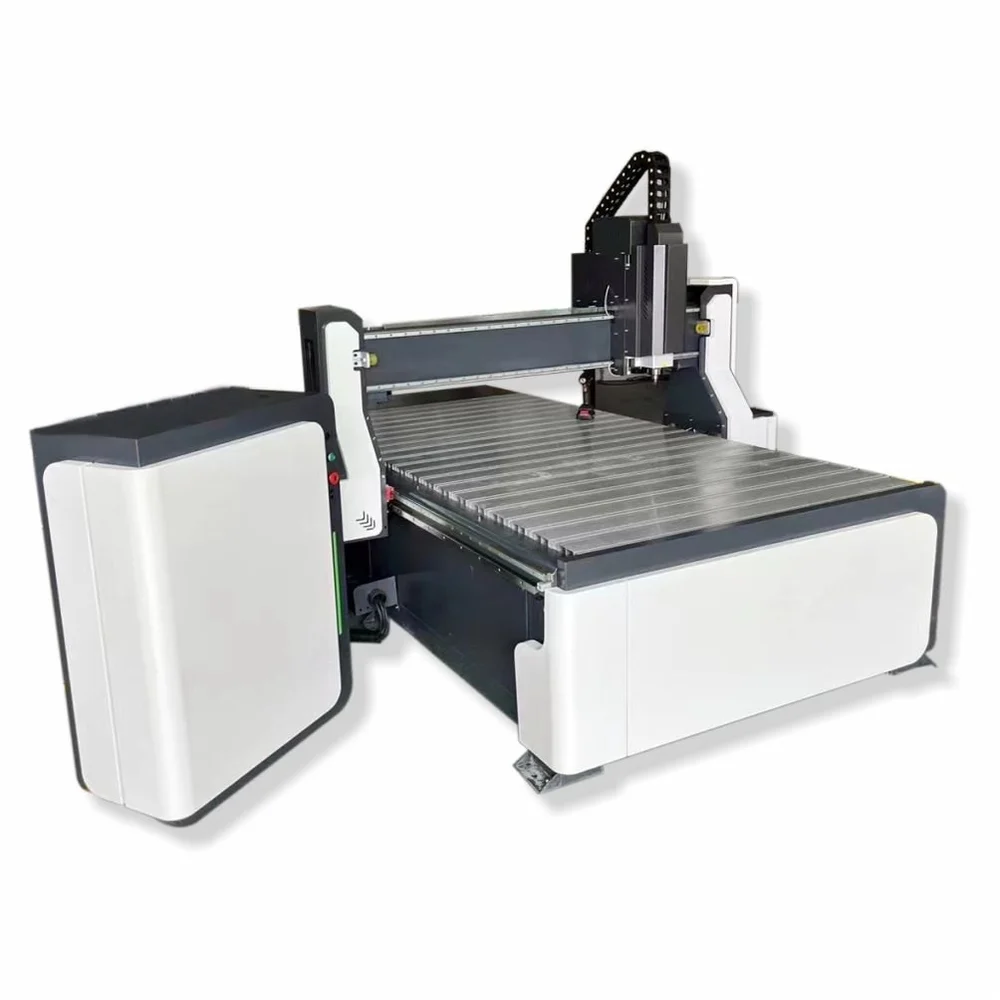

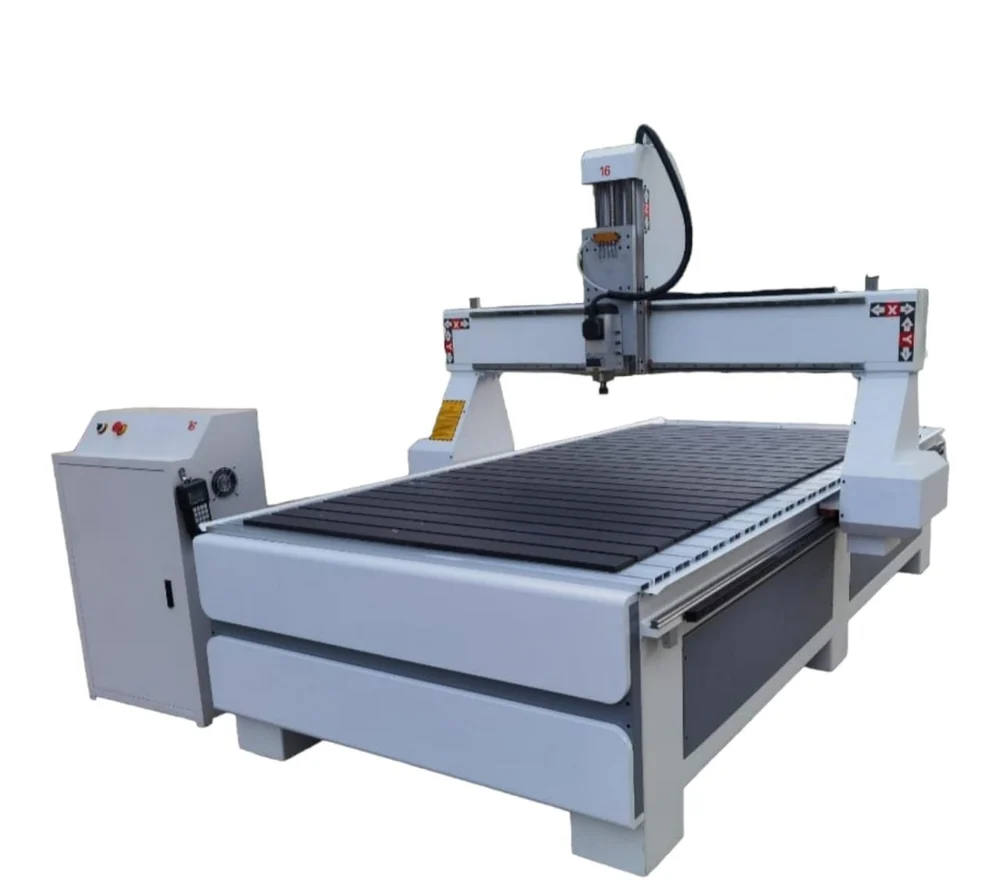

CNC Wood Carving Machine
| Brand | SKS Automation | ||||||||||||||||||||||||||||
| Model Name | SKS9401 | ||||||||||||||||||||||||||||
| Model Number | FINE CUT | ||||||||||||||||||||||||||||
| Operation Mode | Auto | ||||||||||||||||||||||||||||
| Automation Grade | Fully Automatic | ||||||||||||||||||||||||||||
| Spindle Power | 5.5 kW Water Cooled Spindle | ||||||||||||||||||||||||||||
| Spindle Speed | 24,000 RPM | ||||||||||||||||||||||||||||
| Power Consumption | 6 kW | ||||||||||||||||||||||||||||
| Driven Type | Servo Motor | ||||||||||||||||||||||||||||
| Control System | NK105G2 | ||||||||||||||||||||||||||||
| Cutting Material | MDF, Stone, Wood, Marble | ||||||||||||||||||||||||||||
| Table Size | 2500 x 1300 mm (8 x 4 Feet) | ||||||||||||||||||||||||||||
| Machine Size | 8 x 4 Feet | ||||||||||||||||||||||||||||
| Voltage | 3 Phase 220V | ||||||||||||||||||||||||||||

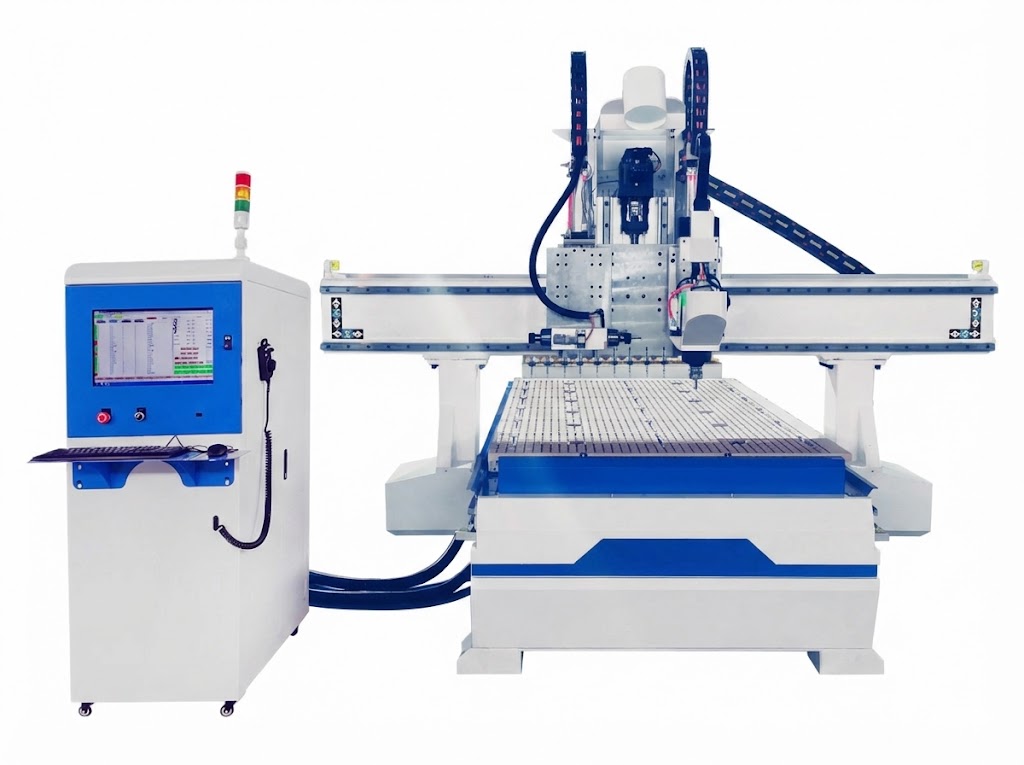

| Brand | SKS Automation |
| Model Number / Name | SKS 1225-ATC |
| Machine Type | ATC CNC Router Machine |
| X-Y Axis Working Area | 1300 x 2500 mm |
| Spindle Power | 6 kW |
| Spindle Head Type | Auto Tool Changer (ATC) Spindle |
| Spindle Speed | 24,000 RPM |
| Maximum Cutting Speed | 20,000 mm/min |
| Motor | Three Phase Motor |
| Control System | NK105G2 |
| Automation Grade | Fully Automatic |
| Computerized | Yes |
| Laser Generator | No |
| Job Material | Plastic, Acrylic, Wood, Foam Board |
| Repositioning Accuracy | ±0.02 mm |
What is a CNC Wood Cutting Machine?
A CNC Wood Carving Machine is a computer-controlled machine that automatically cuts, carves, and shapes wood with high accuracy. It follows programmed instructions to create precise designs, making woodworking faster and more consistent.
Q2. What materials can a CNC wood router cut?
It can work on wood, MDF, plywood, acrylic, PVC, and other soft materials.
What is CNC woodworking machinery used for?
CNC woodworking machinery is used for furniture making, wooden doors, cabinets, signage, decorative panels, and carving designs.
What is spindle power in a CNC wood router?
Spindle power (like 3.5 kW, 5.5 kW, or 6 kW) decides cutting speed and strength. Higher power is better for heavy and continuous work.
What is ATC in a CNC wood router?
ATC stands for Automatic Tool Changer. It allows the machine to change tools automatically, saving time and improving productivity.
Is a CNC wood router easy to operate?
Yes, with basic training, operators can easily control the machine using CNC software.
What industries use CNC wood router machines?
Furniture manufacturing, interior design, woodworking, advertising, and the modular kitchen industries widely use these machines.
What maintenance does a CNC wood router require?
Regular cleaning, lubrication, checking spindle and tools, and software updates help keep the machine running smoothly.
